When 12 wt Thread Loves One Machine and Fights Another

March 17, 2026

Have you ever had a thread behave beautifully on one machine and then act like a total diva on another? That was my life recently while working on a Weave That! Fabric Christmas stocking.

My goal: bold, decorative stitching using 12 wt thread for embellishment.
My reality: my Aurifil 12 wt stitched like a dream on one machine and broke constantly on another—same project, same thread, same bobbin thread.

In this post I’ll walk you through what happened, what I changed, and the “recipe” that finally worked. I’ll also share why I prefer Aurifil 12 wt over Sulky 12 wt when I want really bold embellishment.

The Project: A Weave That! Fabric Christmas Stocking

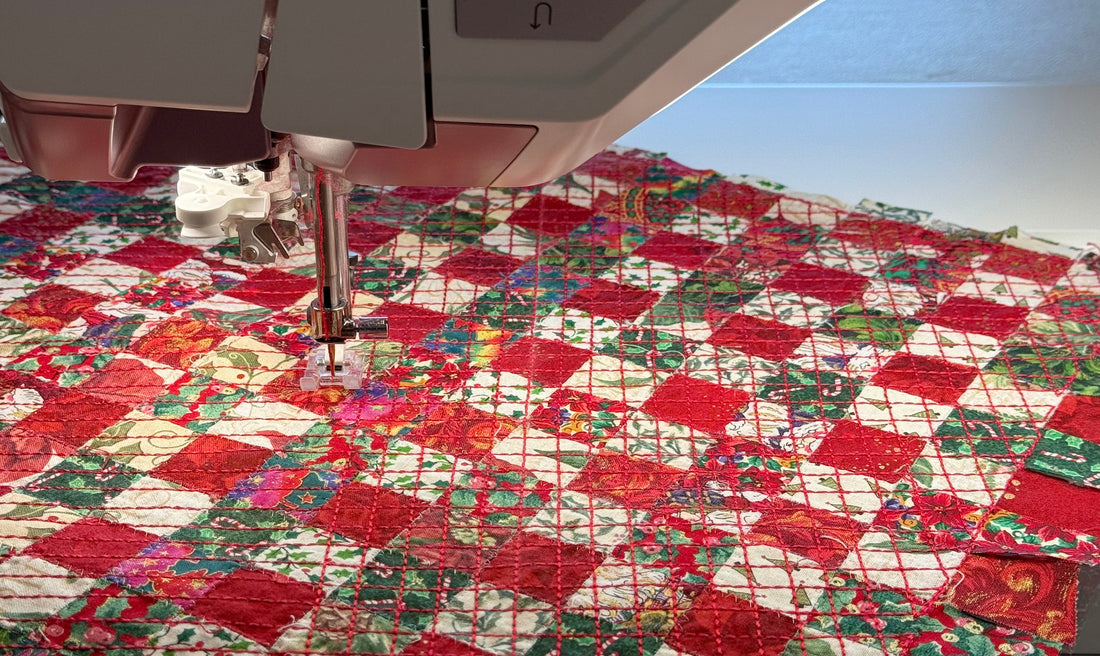

This all started with a Weave That! Fabric Christmas stocking project. One-inch wide strips are woven to create the perfect canvas for decorative stitching—lots of texture and plenty of opportunity to show off heavy thread embellishment.

For the top thread, I use Aurifil 12 wt cotton. In the bobbin I used Aurifil 50 wt (2-strand), a nice, fine thread that plays well with heavier top threads. I wanted those stitches to sit on top of the fabric and really show.

Two Machines, Two Very Different Behaviors

On my older sewing machine, I’d used Aurifil 12 wt in the past without any problems. When I moved to a newer machine with a longer, more horizontal thread path before it turns down into the tension discs, that’s when the thread-breaking issues began.

You’ll see this clearly in the two photos below:

On my older Sapphire 850, the thread barely travels horizontally before it drops down.
On the newer Epic 3, the thread runs a longer distance horizontally before turning down to the tension discs.

On the short horizontal path machine, the Aurifil 12 wt behaved beautifully. Straight stitching, 3 mm stitch length, Aurifil 50 wt in the bobbin, a 90/14 topstitch needle, reduced speed—and no drama at all.

On the longer, horizontal-path machine, the exact same setup gave me frequent top-thread breaks, always near the needle. Same project, same thread, same thread in the bobbin, same stitch length. It was maddening.

What I Tried First (That Didn’t Fix It)

Before I started blaming machine geometry, I worked through the usual suspects:

Re-threaded the machine multiple times
Switched to a fresh 90/14 topstitch needle
Slowed down my stitching speed even more
Used a thread stand with the Aurifil 12 wt
Checked the needle plate (in this case, I was using the zigzag plate)

Despite all of that, the heavy Aurifil 12 wt still kept breaking right at or just above the needle on the machine with the longer, more horizontal thread path. The other machine, with the short path, just kept sewing happily.

That contrast is what made me start looking at how the thread was traveling before it even reached the tension discs.

The Lightbulb Moment: Thread Path Geometry

When I stepped back and really looked at both machines, the difference was obvious:

On the short-path machine, the thread comes off the spool and almost immediately heads downward toward the tension discs. There’s not much opportunity for extra drag or “pre-tension” before the thread enters the tension discs.
On the long-path machine, the thread travels horizontally for a while before it finally turns down. With a fine 50 wt or 40 wt thread, this isn’t usually a big deal. But with a thick, wiry Aurifil 12 wt, the extra distance adds drag.

What that means in practice: by the time the 12 wt thread reaches the tension discs on the longer-path machine, it’s already under more stress. So even if the tension number on the screen looks the same as what I use on the other machine, the effective tension is higher.

That higher effective tension explains why the thread was breaking at the needle on one machine while behaving perfectly on the other, even though I thought I had “the same settings.”

The Fix: A New “Recipe” for 12 wt on the Longer-Path Machine

The breakthrough came when I stopped trying to treat both machines the same and instead set up the longer-path machine specifically for the Aurifil 12 wt thread.

Here’s the combination that finally worked:

Top thread: Aurifil 12 wt cotton
Bobbin thread: Aurifil 50 wt cotton (2-strand)
Needle: 100/16 topstitch
Top tension: around 3 (significantly lower than my normal setting)
Stitch length: about 3.5 mm
Thread delivery: don’t use the built-in thread stand, instead use the angled position to feed as horizontally and smoothly as possible into the first guide
Stitching: slow to moderate speed

The two biggest game-changers were:

Going up to a 100/16 topstitch needle
The larger eye and deeper groove gave the thick 12 wt thread more room, so it stopped rubbing and chafing at the needle. That alone made a big difference in how the thread looked and how long it lasted.
Lowering the top tension and slightly lengthening the stitch
Dropping the top tension to about 3 and nudging the stitch length up to around 3.5 mm took the “tightness” out of each stitch. Since the thread was already working harder just to get through that longer path, easing up on the tension at the needle made it stop breaking.

With that combination—100/16 needle, tension around 3, 3.5 mm stitch length—the longer-path machine suddenly stitched Aurifil 12 wt as happily as the shorter-path machine. No more breaks, and the stitches looked full and balanced.

Aurifil 12 wt vs. Sulky 12 wt: Why I Prefer Aurifil Here

On this Weave That! Fabric stocking project, I’m working from past experience with both Aurifil 12 wt and Sulky 12 wt. In the photo below the two threads may look very similar, but when sewn they don’t stitch the same. I already knew the Sulky 12 wt doesn’t build up as dense or full a line of stitching for the embellishment.

Even though they’re both labeled 12 wt, they don’t feel identical in use. Aurifil 12 wt feels and looks slightly thicker and seems to fill the stitch more. That extra body gives a fuller, more dimensional line of stitching—exactly what I want for decorative embellishment on the woven fabric. With a thinner 12 wt like Sulky, or a 40 wt embroidery thread, I can use a reinforcement or triple-straight stitch to stack stitches and get closer to Aurifil’s visual weight, but it takes more time to sew all that embellishment.

Sulky 12 wt can absolutely work, but for this project—where I wanted the stitching to really stand out without doubling back over every stitch—Aurifil gave me the look I was after, once I dialed in the right settings. So yes, Aurifil 12 wt needed a bit more fussing on the machine with the longer thread path—but once my Epic 3 was happy, the payoff in stitch speed and appearance was worth it.

Takeaways for Any Machine with Heavy Thread

Here’s what I learned that can apply to many different brands and models:

The same 12 wt thread can behave very differently from one machine to another, largely because of the thread path. Machines with a longer, more horizontal path before the tension discs tend to “pre-tension” heavy thread more than machines with a short horizontal and mostly vertical path.
On machines with that longer horizontal path before the thread turns vertical (like my Epic 3 and a previous Juki I’ve used), 12 wt thread often needs:
- A larger 100/16 topstitch needle
- Lower top tension than you’d consider normal
- A slightly longer stitch length than you might use on a simpler, more vertical-path machine
On machines with a short, direct, mostly vertical path (like my Sapphire 850), you may be able to run the same 12 wt thread at higher tension, with a slightly smaller needle and shorter stitch length, and still get smooth, trouble-free stitching.
For visible embellishment on projects like a Weave That! Fabric Christmas stocking, a slightly thicker 12 wt thread such as Aurifil can give a richer, more dimensional decorative line than some other brands—as long as you’re willing to adjust the needle size, tension, and stitch length to match your particular machine’s thread path.

If all this talk about heavy thread and bold stitching has you curious about the fabric underneath, you might also enjoy my Weave That! Fabric course.

I originally learned this weaving technique for garments, and the Christmas stocking is a fun spin-off project that grew out of that same woven fabric idea. The technique works beautifully for lots of other projects too.

And if you’re wondering why I’m making a Christmas stocking early in the year… it’s simple: this way I might actually have it finished by Christmas 😊
